CTX Speed Monitoring Proximity Sensor CTX-HA30 Speed Monitoring Pro...

● Inductive proximity sensors detect metal.

●Motor high speed 120-3000 rpmmonitoring.

● Cylindrical M30 thread, nickel-copper alloy housing, 2metre leads.

● Buried type, detection distance 10mm.

●PNP, AC/DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High response frequency up to 100 KHz.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

● Detection by metal objects on the shaft or directly onthe gears.

●Monitoringof motor operation at high and low speeds. Controls reliable and smooth motoroperation.

Online Consultation

form

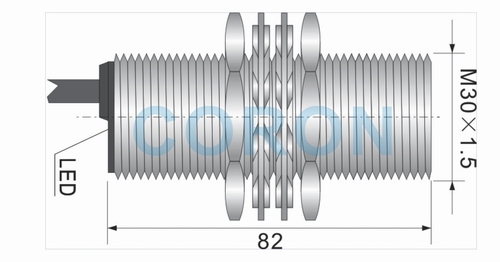

M30×1.5

Installation form

flush-mounted

Detection distance

10mm

Setting distance

0-8mm

PNP 3-wire

NO

CTX-HA30M-10APA

NC

------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

Detection speed

120-3000 rpm

AC/DC 2-wire

NO

CTX-HA30M-10HMA

NC

------

Supply Voltage

20-250VAC/DC

Current consumption

≤15mA

Output Current

≤300mA

Output Voltage Drop

≤8V

Detection speed

120-3000 rpm

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67
