CXJ Analogue Proximity Sensor CXJ-A12M Analogue Proximity S...

● Inductive proximity sensors detect metal.

● Analogue40-20mA, 0-10VDC output.

● M12 threaded cylindrical, 2 metre leads.

● Buried type, detection distance 2mm.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used for distance measurement,thickness measurement, and selection measurement of machinery and equipment.

Online Consultation

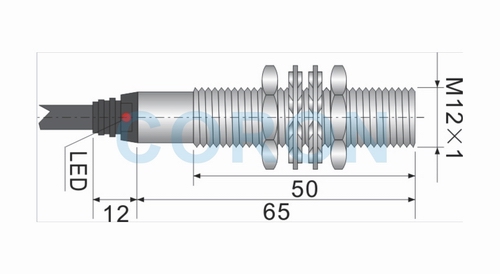

form		M12×1
Installation form		flush-mounted
Detection distance		2mm
Setting distance		0-1.6mm
voltage output	0-10VDC	CXJ-A12M-2APLU
current output	4-20mA	CXJ-A12M-2 APLI
Supply Voltage		10-30VDC
output voltage		0-10VDC
Output Current		4-20mA
load resistance		Voltage output R≥4.7KΩ, current output R≤470Ω
response frequency		≤800Hz
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
connection method		2m cable
protection class		IP67
