CXJ Analogue Proximity Sensor CXJ-A30 Analogue Proximity Se...

● Inductive proximity sensors detect metal.

● Analogue40-20mA, 0-10VDC output.

● Cylindrical M30 thread, 2 metre lead.

● Non-buried, detection distance 15mm.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used for distance measurement,thickness measurement, and selection measurement of machinery and equipment.

Online Consultation

form

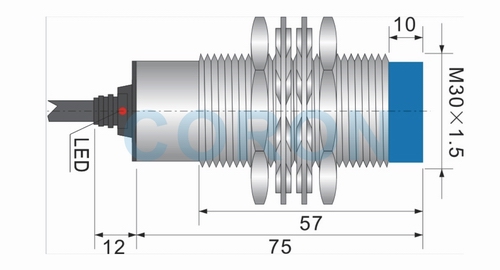

M30×1.5

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

voltage output

0-10VDC

CXJ-A30-15APLU

current output

4-20mA

CXJ-A30-15APLI

Supply Voltage

10-30VDC

output voltage

≤15mA

Output Current

≤200mA

load resistance

Voltage output R≥4.7KΩ, current output R≤470Ω

response frequency

≤400Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67

CXJ Analogue Proximity Sensor ( 0 )
