CWJ Stainless Steel Proximity Sensor CXJ-A30M Analogue Proximity S...

● Inductive proximity sensors detect metal.

● Analogue40-20mA, 0-10VDC output.

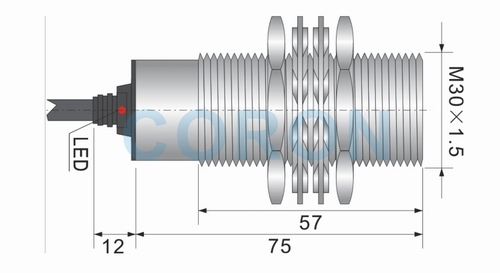

● Cylindrical M30 thread, 2 metre lead.

● Buried type, detection distance 10mm.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used for distance measurement,thickness measurement, and selection measurement of machinery and equipment.

Online Consultation

form		M30×1.5
Installation form		flush-mounted
Detection distance		10mm
Setting distance		0-8mm
voltage output	0-10VDC	CXJ-A30M-10APLU
current output	4-20mA	CXJ-A30M-10APLI
Supply Voltage		10-30VDC
output voltage		0-10VDC
Output Current		4-20mA
load resistance		Voltage output R≥4.7KΩ, current output R≤470Ω
response frequency		≤800Hz
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
connection method		2m cable
protection class		IP67
