CYJ High Pressure Proximity Sensor CYJ-A16M-G High Pressure Pro...

● Inductive proximity sensors detect metal.

● Stainless steel integrated design, highpressure resistance up to 500bar.

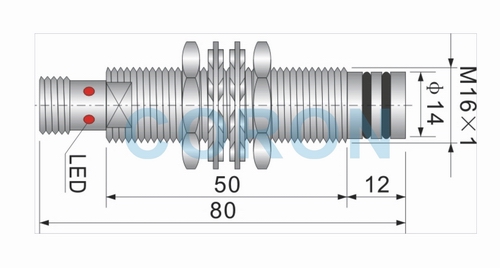

● Cylindrical M16 thread with M12connector.

● Buried type, detection distance 2mm.

●NPN, PNP output, DC two-wire output.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely used in hydraulic systems andother high-pressure environments.

Online Consultation

form		M16×1-G
Installation form		Unburied
Detection distance		2mm
Setting distance		0-1.6mm
NPN 3-wire	NO	CLJ-A16M-5ANA-G
	NC	CLJ-A16M-5ANB-G
	N+C
NPN 3-wire	NO	CLJ-A16M-5APA-G
	NC	CLJ-A16M-5APB-G
	N+C
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤1000Hz
DC 2-wire	NO	CLJ-A16M-5ALA-G
	NC	CLJ-A16M-5ALB-G
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5V
response frequency		≤500Hz
Repeatability		<1 per cent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Full stainless steel housing
connection method		M12 Connector
protection class		IP67
