CZJ Enhanced Long Range Proximity Sensor CZJ-B4M Enhanced Long Range Pr...

● Inductive proximity sensors detect metal.

●Enhanced long-range type with 2to 3 times the detection distance of the normal type.

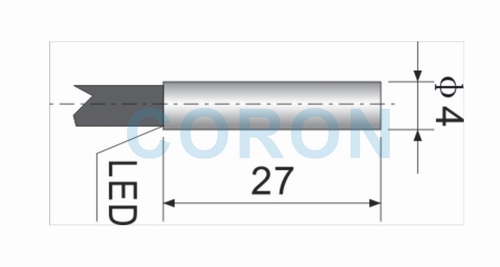

● Cylindricalφ4 thread, nickel-copper alloy housing, 2mmetre leads.

●Buried type, detection distance 1mm, 1.5mm.

●NPN, PNP output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

form

φ4

φ4

Installation form

flush-mounted

flush-mounted

Detection distance

1mm

1.5mm

Setting distance

0-0.8mm

0-1.2mm

NPN 3-wire

NO

CZJ-B4M-1ANA

CZJ-B4M-1.5ANA

NC

CZJ-B4M-1ANB

CZJ-B4M-1.5ANB

N+C

------

------

PNP 3-wire

NO

CZJ-B4M-1APA

CZJ-B4M-1.5APA

NC

CZJ-B4M-1APB

CZJ-B4M-1.5APB

N+C

------

------

Supply Voltage

10-30VDC

10-30VDC

Current consumption

≤15mA

≤15mA

Output Current

≤200mA

≤200mA

Output Voltage Drop

≤1.5V

≤1.5V

response frequency

≤2000Hz

≤1000Hz

Repeatability

<1 percent

<1 percent

Output indicator

red LED

red LED

environmental temperature

-25°C-+75°C

-25°C-+75°C

Environmental humidity

35-95%RH

35-95%RH

Shell material

Nickel-copper alloy

Nickel-copper alloy

connection method

2m cable

2m cable

protection class

IP67

IP67
