CZJ Enhanced Long Range Proximity Sensor CZJ-A8 Enhanced Long Range Pro...

● Inductive proximity sensors detect metal.

●Enhanced long-range type with 2to 3 times the detection distance of the normal type.

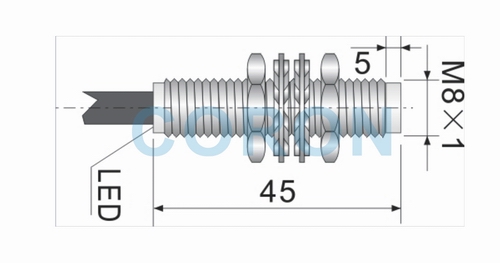

● Cylindrical M8 thread, nickel-copper alloy housing, 2mmetre leads.

● Non-buried type, detection distance 4mm, 6mm.

●NPN, PNP output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.


Online Consultation

form

M8×1

M8×1

Installation form

Unburied

Unburied

Detection distance

4mm

6mm

Setting distance

0-3.2mm

0-4.8mm

NPN 3-wire

NO

CZJ-A8-4ANA

CZJ-A8-6ANA

NC

CZJ-A8-4ANB

CZJ-A8-6ANB

N+C

------

------

PNP 3-wire

NO

CZJ-A8-4APA

CZJ-A8-6APA

NC

CZJ-A8-4APB

CZJ-A8-6APB

N+C

------

------

Supply Voltage

10-30VDC

10-30VDC

Current consumption

≤15mA

≤15mA

Output Current

≤200mA

≤200mA

Output Voltage Drop

≤1.5V

≤1.5V

response frequency

≤1000Hz

≤500Hz

Repeatability

<1 percent

<1 percent

Output indicator

red LED

red LED

environmental temperature

-25°C-+75°C

-25°C-+75°C

Environmental humidity

35-95%RH

35-95%RH

Shell material

Nickel-copper alloy

Nickel-copper alloy

connection method

2m cable

2m cable

protection class

IP67

IP67
