CZJ Enhanced Long Range Proximity Sensor CZJ-A8-G Enhanced Long Range ...

● Inductive proximity sensors detect metal.

●Enhanced Long Rangetype with 2 to 3 times the detection distance of the normal type.

● Cylindrical M8 thread, nickel-copper alloyhousing withM12 connector.

● Non-buried type, detection distance 4mm,6mm.

●NPN, PNP output.

●Adoption of dedicatedIC to achieve excellent anti-interference performance.

● Red LED indicator shows the working statusof the sensor.

● High detection accuracy and fast responsetime.

● With polarity protection and short-circuitprotection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection and so on.

Online Consultation

form

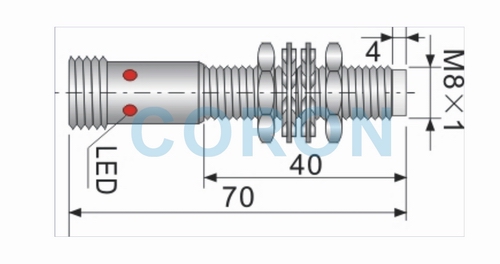

M8×1

M8×1

Installation form

Unburied

Unburied

Detection distance

4mm

6mm

Setting distance

0-3.2mm

0-4.8mm

NPN 3-wire

NO

CZJ-A8-4ANA-G

CZJ-A8-6ANA-G

NC

CZJ-A8-4ANB-G

CZJ-A8-6ANB-G

N+C

------

------

PNP 3-wire

NO

CZJ-A8-4APA-G

CZJ-A8-6APA-G

NC

CZJ-A8-4APB-G

CZJ-A8-6APB-G

N+C

------

------

Supply Voltage

10-30VDC

10-30VDC

Current consumption

≤15mA

≤15mA

Output Current

≤200mA

≤200mA

Output Voltage Drop

≤1.5V

≤1.5V

response frequency

≤1000Hz

≤500Hz

Repeatability

<1 percent

<1 percent

Output indicator

red LED

red LED

environmental temperature

-25°C-+75°C

-25°C-+75°C

Environmental humidity

35-95%RH

35-95%RH

Shell material

Nickel-copper alloy

Nickel-copper alloy

connection method

M12 Connector

M12 Connector

protection class

IP67

IP67
