CZJ Enhanced Long Range Proximity Sensor CZJ-A8M-G Enhanced Long Range...

● Inductive proximity sensors detect metal.

●Enhanced Long Rangetype with 2 to 3 times the detection distance of the normal type.

● Cylindrical with M12 thread, Nickel-copperalloy housing withM12 connector.

● Non-buried type, detection distance 2mm,3mm.

●NPN, PNP output.

●Adoption of dedicatedIC to achieve excellent anti-interference performance.

● Red LED indicator shows the working statusof the sensor.

● High detection accuracy and fast responsetime.

● With polarity protection and short-circuitprotection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection and so on.

Online Consultation

Model parameter

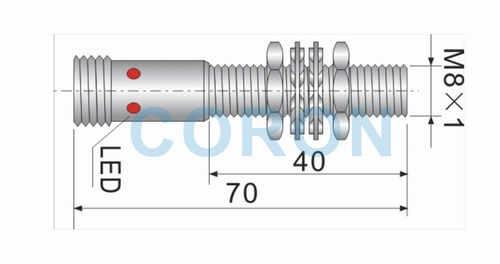

Outline size
Wiring diagram

form		M8×1-G	M8×1-G
Installation form		flush-mounted	flush-mounted
Detection distance		2mm	3mm
Setting distance		0-1.6mm	0-2.4mm
NPN 3-wire	NO	CZJ-A8M-2ANA-G	CZJ-A8M-3ANA-G
	NC	CZJ-A8M-2ANB-G	CZJ-A8M-3ANB-G
	N+C	------	------
PNP 3-wire	NO	CZJ-A8M-2APA-G	CZJ-A8M-3APA-G
	NC	CZJ-A8M-2APB-G	CZJ-A8M-3APB-G
	N+C	------	------
Supply Voltage		10-30VDC	10-30VDC
Current consumption		≤15mA	≤15mA
Output Current		≤200mA	≤200mA
Output Voltage Drop		≤1.5V	≤1.5V
response frequency		≤1000Hz	≤500Hz
Repeatability		<1 percent	<1 percent
Output indicator		red LED	red LED
environmental temperature		-25°C-+75°C	-25°C-+75°C
Environmental humidity		35-95%RH	35-95%RH
Shell material		Nickel-copper alloy	Nickel-copper alloy
connection method		M12 Connector	M12 Connector
protection class		IP67	IP67
