CZJ Enhanced Long Range Proximity Sensor CZJ-A12-G Enhanced Long Range...

● Inductive proximity sensors detect metal.

●Enhanced long-rangetype with 2 to 3 times the detection distance of the normal type.

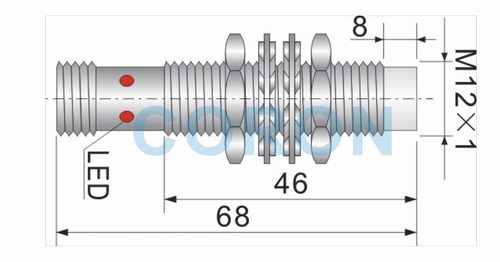

● Cylindrical with M12 thread, Nickel-copperalloy housing withM12 connector.

● Non-buried type, detection distance 8mm,10mm.

●NPN, PNP output.

●Adoption of dedicatedIC to achieve excellent anti-interference performance.

● Red LED indicator shows the working statusof the sensor.

● High detection accuracy and fast responsetime.

● With polarity protection and short-circuitprotection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection and so on.


Online Consultation

form

M12×1-G

M12×1-G

Installation form

Unburied

Unburied

Detection distance

8mm

10mm

Setting distance

0-6.4mm

0-8mm

NPN 3-wire

NO

CZJ-A12-8ANA-G

CZJ-A12-10ANA-G

NC

CZJ-A12-8ANB-G

CZJ-A12-10ANB-G

N+C

------

------

PNP 3-wire

NO

CZJ-A12-8APA-G

CZJ-A12-10APA-G

NC

CZJ-A12-8APB-G

CZJ-A12-10APB-G

N+C

------

------

Supply Voltage

10-30VDC

10-30VDC

Current consumption

≤15mA

≤15mA

Output Current

≤200mA

≤200mA

Output Voltage Drop

≤1.5V

≤1.5V

response frequency

≤500Hz

≤400Hz

Repeatability

<1 percent

<1 percent

Output indicator

red LED

red LED

environmental temperature

-25°C-+75°C

-25°C-+75°C

Environmental humidity

35-95%RH

35-95%RH

Shell material

Nickel-copper alloy

Nickel-copper alloy

connection method

M12 Connector

M12 Connector

protection class

IP67

IP67

CZJ Enhanced Long Range Proximity Sensor ( 0 )
