CZJ Enhanced Long Range Proximity Sensor CZJ-A12M-G Enhanced Long Rang...

● Inductive proximity sensors detect metal.

● Enhanced Long Range Type, with 2 to 3 times the detectiondistance of the normal type.

● Cylindrical with M12 thread, Nickel-copperalloy housing withM12 connector.

● Non-buried type, detection distance 4mm,6mm.

●NPN, PNP output.

●Adoption of dedicatedIC to achieve excellent anti-interference performance.

● Red LED indicator shows the working statusof the sensor.

● High detection accuracy and fast responsetime.

● With polarity protection and short-circuitprotection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection and so on.

Online Consultation

Model parameter

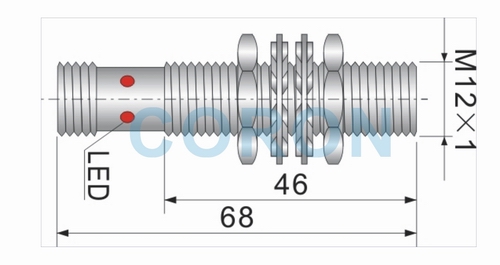

Outline size
Wiring diagram

form		M12×1-G	M12×1-G
Installation form		flush-mounted	flush-mounted
Detection distance		4mm	6mm
Setting distance		0-3.2mm	0-4.8mm
NPN 3-wire	NO	CZJ-A12M-4ANA-G	CZJ-A12M-6ANA-G
	NC	CZJ-A12M-4ANB-G	CZJ-A12M-6ANB-G
	N+C	------	------
PNP 3-wire	NO	CZJ-A12M-4APA-G	CZJ-A12M-6APA-G
	NC	CZJ-A12M-4APB-G	CZJ-A12M-6APB-G
	N+C	------	------
Supply Voltage		10-30VDC	10-30VDC
Current consumption		≤15mA	≤15mA
Output Current		≤200mA	≤200mA
Output Voltage Drop		≤1.5V	≤1.5V
response frequency		≤1000Hz	≤800Hz
Repeatability		<1 percent	<1 percent
Output indicator		red LED	red LED
environmental temperature		-25°C-+75°C	-25°C-+75°C
Environmental humidity		35-95%RH	35-95%RH
Shell material		Nickel-copper alloy	Nickel-copper alloy
connection method		M12 Connector	M12 Connector
protection class		IP67	IP67
