CCJ Plastic Capacitive Proximity Sensor CCJ-A18 Plastic Capacitive Pr...

● Capacitive proximity sensors can detectmetallic, non-metallic, and liquid substances.

● Cylindrical M18 thread, plastic housing, 2 metre leads.

● Non-buried, detection distance 8mm.

●NPN, PNP, AC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With sensitivity adjustment function.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. for automationequipment.

●Widelyused in food, packaging, automated machinery, material level control, etc.

Online Consultation

form

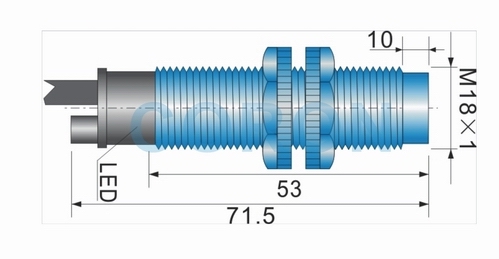

M18×1

Installation form

Unburied

Detection distance

8mm

Setting distance

0-6.4mm

NPN 3-wire

NO

CCJ-A18-8ANA

NC

CCJ-A18-8ANB

N+C

CCJ-A18-8ANC

PNP 3-wire

NO

CCJ-A18-8APA

NC

CCJ-A18-8APB

N+C

CCJ-A18-8APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤80Hz

AC 2-wire

NO

CCJ-A18-8GKA

NC

CCJ-A18-8GKB

Supply Voltage

90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤10Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

connection method

2m cable

protection class

IP67
