CRJ Metal Capacitive Proximity Sensor CRJ-A12M Plastic Capacitive P...

● Capacitive proximity sensors can detectmetallic, non-metallic, and liquid substances.

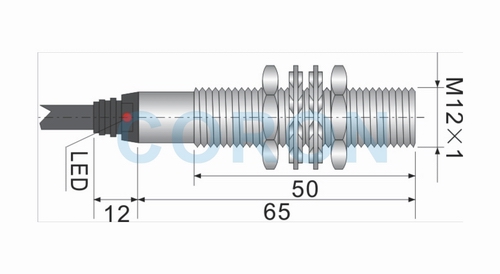

● Cylindrical M12 thread, metal housing, 2 metre leads.

●Buried type, detection distance 3mm.

●NPN, PNP, AC two-wire output.

●Adoption of dedicated ICto achieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With sensitivity adjustment function.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in food, packaging,automated machinery, material level control, etc.

Online Consultation

form

M12×1

Installation form

flush-mounted

Detection distance

3mm

Setting distance

0-2.4mm

NPN 3-wire

NO

CRJ-A12M-3ANA

NC

CRJ-A12M-3ANB

N+C

CRJ-A12M-3ANC

PNP 3-wire

NO

CRJ-A12M-3APA

NC

CRJ-A12M-3APB

N+C

CRJ-A12M-3APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤200Hz

AC2-wire

NO

CRJ-A12M-3GKA

NC

CRJ-A12M-3GKB

Supply Voltage

 90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤20Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67
