CRJ Metal Capacitive Proximity Sensor CRJ-A18M-G Plastic Capacitive...

● Capacitive proximity sensors can detectmetallic, non-metallic, and liquid substances.

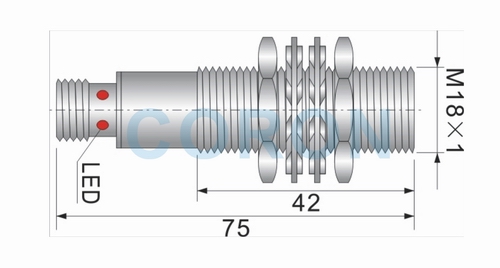

● Cylindrical M18 thread, metal housing withM12 connector.

● Buried type, detection distance 5mm.

●NPN, PNP, AC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With sensitivity adjustment function.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in food, packaging, automatedmachinery, material level control, etc. Online Consultation

form

M18×1

Installation form

flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CRJ-A18M-5ANA-G

NC

CRJ-A18M-5ANB-G

N+C

PNP 3-wire

NO

CRJ-A18M-5APA-G

NC

CRJ-A18M-5APB-G

N+C

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤100Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

M12 Connector

protection class

IP67

CRJ Metal Capacitive Proximity Sensor ( 0 )
