CRJ Metal Capacitive Proximity Sensor CRJ-A30 Plastic Capacitive Pro...

● Capacitive proximity sensors can detectmetallic, non-metallic and liquid substances.

● Cylindrical M30 thread, metal housing, 2 metre leads.

● Non-buried, detection distance 15mm.

●NPN, PNP, AC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With sensitivity adjustment function.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. for automationequipment.

●Widelyused in food, packaging, automated machinery, material level control, etc.

Online Consultation

form

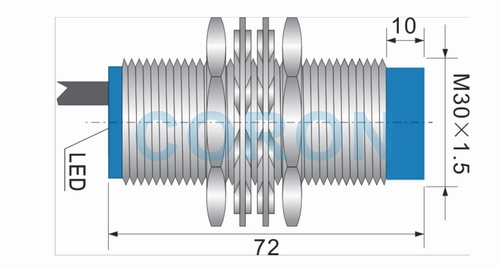

M30×1.5

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire

NO

CRJ-A30-15ANA

NC

CRJ-A30-15ANB

N+C

PNP 3-wire

NO

CRJ-A30-15APA

NC

CRJ-A30-15APB

N+C

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤50Hz

AC2-wire

NO

CRJ-A30-15GKA

NC

CRJ-A30-15GKB

Supply Voltage

90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤10Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67

CRJ Metal Capacitive Proximity Sensor ( 0 )
