CFJ Hall Proximity Sensor CFJ-A8M Hall Proximity Sensor...

● Hall proximity sensors detect magnets.

● Cylindrical M8 thread, nickel-copper alloy housing, 2metre leads.

● Non-buried, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High response frequency up to 5000Hz.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery and automationequipment for positioning, limiting, detecting, counting, rotating speed and soon.

Online Consultation

form

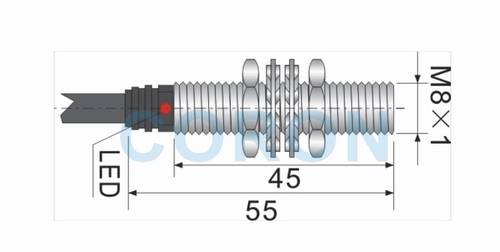

M8×1

Installation form

flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CLJ-A8M-5ANA

NC

CLJ-A8M-5ANB

N+C

 ------

PNP 3-wire

NO

CLJ-A8M-5APA

NC

CLJ-A8M-5APB

N+C

 ------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤5000Hz

DC 2-wire

NO

CLJ-A8M-5ALA

NC

CLJ-A8M-5ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤400Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67
