CFJ Hall Proximity Sensor CFJ-A18BM Hall Proximity Senso...

● Hall proximity sensors detect magnets.

● Cylindrical M18 thread, extra short, nickel-copper alloy housing, 2 metre leads.

● Non-buried, detection distance 12mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor.

● High response frequency up to 5000Hz.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery and automationequipment for positioning, limiting, detecting, counting, rotating speed and soon.

Online Consultation

Model parameter

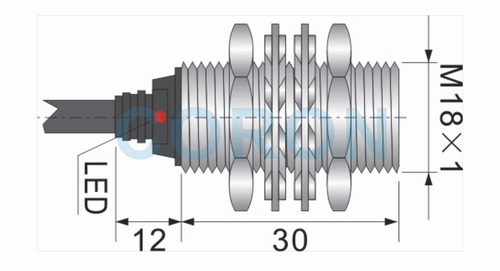

Outline size
Wiring diagram

form		M18×1
Installation form		flush-mounted
Detection distance		12mm
Setting distance		0-9.6mm
NPN 3-wire	NO	CLJ-A18BM-12ANA
	NC	CLJ-A18BM-12ANB
	N+C	------
PNP 3-wire	NO	CLJ-A18BM-12APA
	NC	CLJ-A18BM-12APB
	N+C	------
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤5000Hz
DC 2-wire	NO	CLJ-A18BM-12ALA
	NC	CLJ-A18BM-12ALB
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5V
response frequency		≤400Hz
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
connection method		2m cable
protection class		IP67
