CFJ Hall Proximity Sensor CFJ-A18M-G Hall Proximity Sen...

● Hall proximity sensors detect magnets.

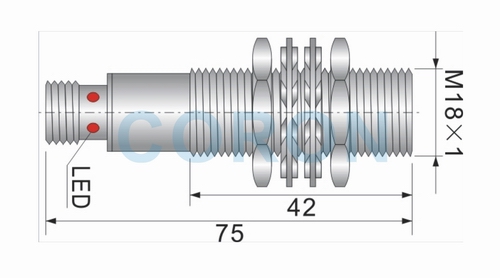

● Cylindrical M18 thread, nickel-copper alloy housing withM12 connector.

● Non-buried, detection distance 12mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High response frequency up to 5000Hz.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery and automationequipment for positioning, limiting, detecting, counting, rotating speed and soon.

Online Consultation

form

M18×1-G

Installation form

flush-mounted

Detection distance

12mm

Setting distance

0-9.6mm

NPN 3-wire

NO

CLJ-A18M-12ANA-G

NC

CLJ-A18M-12ANB-G

N+C

 ------

PNP 3-wire

NO

CLJ-A18M-12APA-G

NC

CLJ-A18M-12APB-G

N+C

 ------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤5000Hz

DC second line

NO

CLJ-A18M-12ALA-G

NC

CLJ-A18M-12ALB-G

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤400Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

M12 Connector

protection class

IP67
