CLJ-F Small Size Proximity Sensor CLJ-F12A-U Small Volume Proxim...

● Inductive proximity sensors detect metal.

● Ultra-small volume shape □ 12 x 12mm, plastic case, 2 meter lead.

●Unburied, top sensing, detectiondistance 4mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

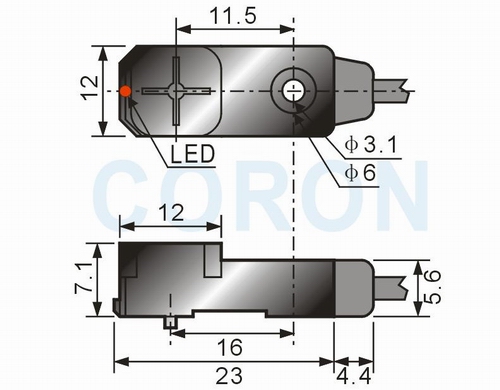

Outline size
Wiring diagram

Form		F12A-U
Installation form		Unburied
Detection distance		2.5mm
Setting distance		0-2mm
NPN 3-wire	NO	CLJ-F12A-4UANA
	NC	CLJ-F12A-4UANB
	N+C	------
NPN 3-wire	NO	CLJ-F12A-4UAPA
	NC	CLJ-F12A-4UAPB
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤800Hz
DC second line	NO	CLJ-F12A-4UALA
	NC	CLJ-F12A-4UALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
Connection method		2m cable
Protection class		IP67
