CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A8M-G Threaded Cylindrical...

●Inductive proximity sensor to detect metal.

●M8 threadedcylindrical, nickel-copper alloy housing with M12 connector.

●Buried type.Detection distance 1.5mm.

●NPN, PNP, DC two-wire output.

●Using special IC toachieve excellent anti-interference performance.

●Red LED indicator can showthe working status of the sensor

●High detection accuracy and fast responsespeed.

●With polarity protection and short circuit protection.

●With long lifeand high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Model parameter

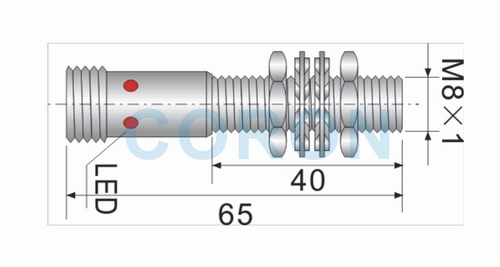

Outline size
Wiring diagram

Type		M8×1-G
Mounting		Flush-mounted
Detection distance		1.5mm
Setting distance		0-1.2mm
NPN3-wire	NO	CLJ-A8M-1.5ANA-G
	NC	CLJ-A8M-1.5ANB-G
	N+C	------
PNP3-wire	NO	CLJ-A8M-1.5APA-G
	NC	CLJ-A8M-1.5APB-G
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤1000Hz
DC2-wire	NO	CLJ-A8M-1.5ALA-G
	NC	CLJ-A8M-1.5ALB-G
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤500Hz
Repeat accuracy		＜1%
Output indicator		Red LED
Ambient temperature		-25℃-+75℃
Ambient humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		M12 connector
Protection degree		IP67
