CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A8M-B3 Threaded Cylindrica...

●Inductive proximity sensors detect metal.

●Cylindrical M8 thread, Nickel-copper alloy housing, lead30 cm with M8 connector.

●Buried type. Detection distance 1.5mm.

●NPN, PNP, DC two-wire output.

●Adoption of special IC to achieveexcellent anti-interference performance.

●The red LED indicator shows the working status of thesensor.

●High detection accuracy and fast response time.

●With polarity protection, short circuit protection.

●With long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc..

Online Consultation

Model parameter

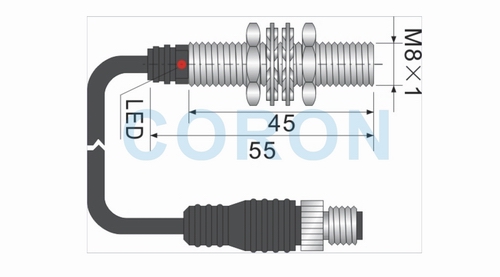

Outline size
Wiring diagram

Type		M8×1-B3
Mounting		Flush-mounted
Detection distance		1mm
Setting distance		0-0.8mm
NPN 3-wire	NO	CLJ-A8M-1ANA-B3
	NC	CLJ-A8M-1ANB-B3
	N+C	------
PNP 3-wire	NO	CLJ-A8M-1APA-B3
	NC	CLJ-A8M-1APB-B3
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤1000Hz
DC 2-wire	NO	CLJ-A8M-1ALA-B3
	NC	CLJ-A8M-1ALB-B3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤500Hz
Repeat accuracy		＜1%
Output indicator		Red LED
Ambient temperature		-25℃-+75℃
Ambient humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		Lead wire 30cm with M8 connector
Protection degree		IP67
