Type

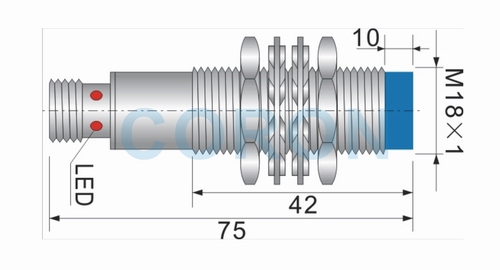

M18×1

Mounting

Unburied

Detection distance

8mm

Setting distance

0-6.4mm

NPN

3-wire/4-wire

NO

CLJ-A18-8ANA-G

NC

CLJ-A18-8ANB-G

N+C

CLJ-A18-8ANC-G

PNP

3-wire/4-wire

NO

CLJ-A18-8APA-G

NC

CLJ-A18-8APB-G

N+C

CLJ-A18-8APC-G

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤200Hz

DC

2-wire

NO

CLJ-A18-8ALA-G

NC

CLJ-A18-8ALB-G

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤100Hz

AC

2-wire

NO

CLJ-A18-8GKA-G

NC

CLJ-A18-8GKB-G

Supply voltage

90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

AC/DC

2-wire

NO

CLJ-A18-8HMA

NC

CLJ-A18-8HMB

Supply voltage

20-250VAC/DC

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

M12 Connector

Protection class

IP67
