CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A30 Threaded Cylindrical P...

● Inductive proximity sensors detect metal.

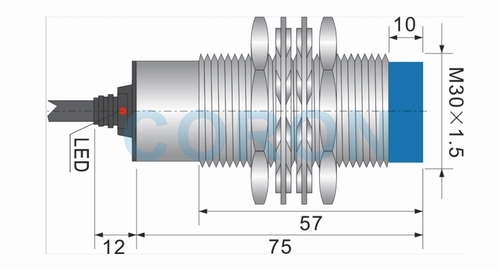

● Cylindrical M30 threads, nickel-copperalloy housing, 2 meter leads.

● Non-buried,detection distance 15mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of a dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicatorto show the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipment positioning,limit, detection and so on.

Online Consultation

Form

M30×1

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire/4-wire

NO

CLJ-A30-15ANA

NC

CLJ-A30-15ANB

N+C

CLJ-A30-15ANC

PNP 3-wire/4-wire

NO

CLJ-A30-15APA

NC

CLJ-A30-15APB

N+C

CLJ-A30-15APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤200Hz

DC 2-wire

NO

CLJ-A30-15ALA

NC

CLJ-A30-15ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤100Hz

AC 2-wire

NO

CLJ-A30-15GKA

NC

CLJ-A30-15GKB

Supply voltage

90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

AC/DC 2-wire

NO

CLJ-A30-15HMA

NC

CLJ-A30-15HMB

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
