CPJ Plastic Proximity Sensor CPJ-A18 Plastic Proximity Sens...

● Inductive proximity sensors detect metal.

● Cylindrical M18 thread, all plastic housing, 2 metre leads.

● Non-buried, detection distance 8mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

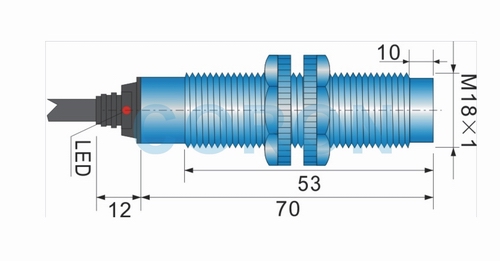

Outline size
Wiring diagram

form		M18×1
Installation form		Unburied
Detection distance		8mm
Setting distance		0-6.4mm
NPN 3-wire/4-wire	NO	CPJ-A18-8ANA
	NC	CPJ-A18-8ANB
	N+C	CPJ-A18-8ANC
PNP 3-wire/4-wire	NO	CPJ-A18-8APA
	NC	CPJ-A18-8APB
	N+C	CPJ-A18-8APC
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤200Hz
DC2-wire	NO	CPJ-A18-8ALA
	NC	CPJ-A18-8ALB
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5
response frequency		≤100Hz
AC2-wire	NO	CPJ-A18-8GKA
	NC	CPJ-A18-8GKB
Supply Voltage		90-250VAC
Current consumption		≤2mA
Output Current		≤300mA
Output Voltage Drop		≤8V
response frequency		≤25Hz
AC/DC 2-wire	NO	CPJ-A18-8HMA
	NC	CPJ-A18-8HMB
Supply Voltage		20-250VAC/DC
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
connection method		2m cable
protection class		IP67
