CZJ Enhanced Long Range Proximity Sensor CZJ-A18-G Enhanced Long Range...

● Inductive proximity sensors detect metal.

●Enhanced long-range type with 2to 3 times the detection distance of the normal type.

● Cylindrical M18 thread, nickel-copper alloy housing, 2mmetre leads.

● Non-buried type, detection distance 16mm, 20mm.

●NPN, PNP output.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

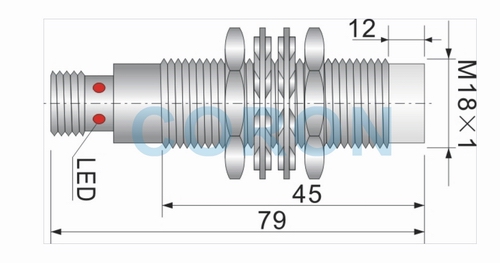

Outline size
Wiring diagram

form		M18×1	M18×1
Installation form		Unburied	Unburied
Detection distance		16mm	20mm
Setting distance		0-12.8mm	0-16mm
NPN 3-wire	NO	CZJ-A18-16ANA	CZJ-A18-20ANA
	NC	CZJ-A18-16ANB	CZJ-A18-20ANB
	N+C	------	------
PNP 3-wire	NO	CZJ-A18-16APA	CZJ-A18-20APA
	NC	CZJ-A18-16APB	CZJ-A18-20APB
	N+C	------	------
Supply Voltage		10-30VDC	10-30VDC
Current consumption		≤15mA	≤15mA
Output Current		≤200mA	≤200mA
Output Voltage Drop		≤1.5V	≤1.5V
response frequency		≤150Hz	≤100Hz
Repeatability		<1 percent	<1 percent
Output indicator		red LED	red LED
environmental temperature		-25°C-+75°C	-25°C-+75°C
Environmental humidity		35-95%RH	35-95%RH
Shell material		Nickel-copper alloy	Nickel-copper alloy
connection method		2m cable	2m cable
protection class		IP67	IP67
