CRJ Metal Capacitive Proximity Sensor CRJ-A18-G Plastic Capacitive ...

● Capacitive proximity sensors can detectmetallic, non-metallic and liquid substances.

● Cylindrical M18 thread, metal housing withM12 connector.

● Non-buried, detection distance 8mm.

●NPN, PNP output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With sensitivity adjustment function.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widelyused in food, packaging, automated machinery, material level control, etc.

Online Consultation

form

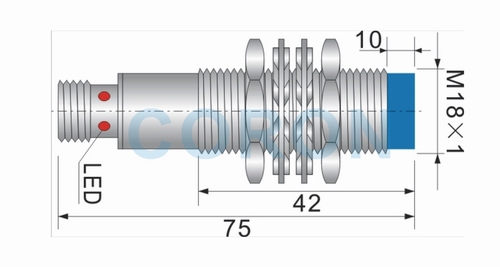

M18×1-G

Installation form

Unburied

Detection distance

8mm

Setting distance

0-6.4mm

NPN 3-wire

NO

CRJ-A18-8ANA-G

NC

CRJ-A18-8ANB-G

N+C

PNP 3-wire

NO

CRJ-A18-8APA-G

NC

CRJ-A18-8APB-G

N+C

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤80Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

M12 Connector

protection class

IP67
